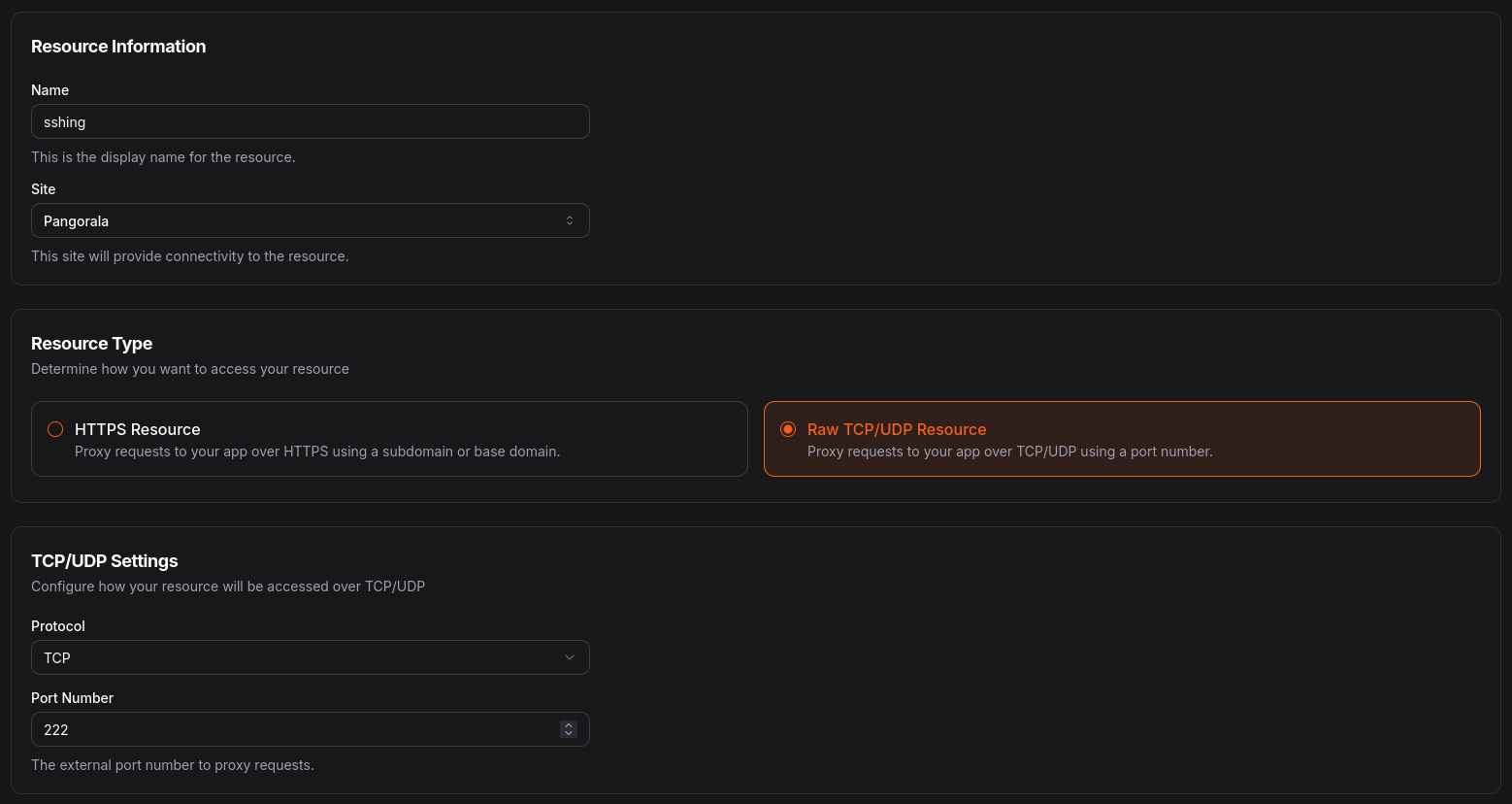

Inside your Pangolin Dashboard, add a new resource, write its name, choose Raw TCP/UDP Resource and enter 222 as a TCP Port number.

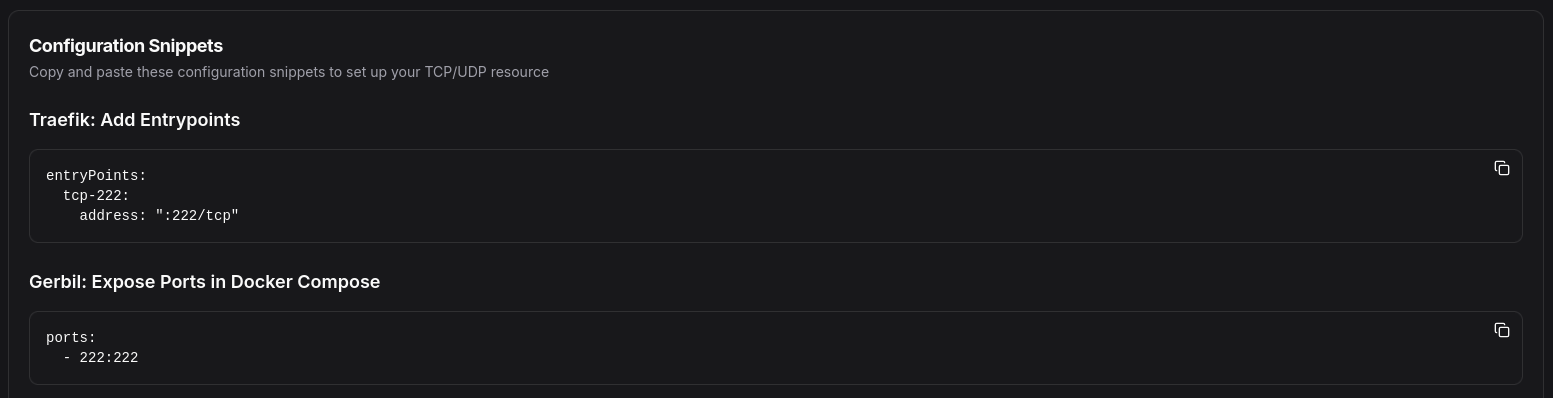

Upon creating the resource, Pangolin will tell you how to open the ports through Traefik and Gerbil.
You will need to edit config/traefik/traefik_config.yml as superuser and add the following:
tcp-222:
address: ":222/tcp"
Next, edit Pangolin’s docker-compose.yml and add 222 under Gerbil’s ports. Gerbil’s configuration should look something like this:
gerbil:
image: fosrl/gerbil:1.0.0
container_name: gerbil
restart: unless-stopped
depends_on:
pangolin:
condition: service_healthy
command:
- --reachableAt=http://gerbil:3003
- --generateAndSaveKeyTo=/var/config/key
- --remoteConfig=http://pangolin:3001/api/v1/gerbil/get-config
- --reportBandwidthTo=http://pangolin:3001/api/v1/gerbil/receive-bandwidth
volumes:
- ./config/:/var/config
cap_add:
- NET_ADMIN
- SYS_MODULE
ports:
- 51820:51820/udp
- 443:443 # Port for traefik because of the network_mode
- 80:80 # Port for traefik because of the network_mode
- 222:222

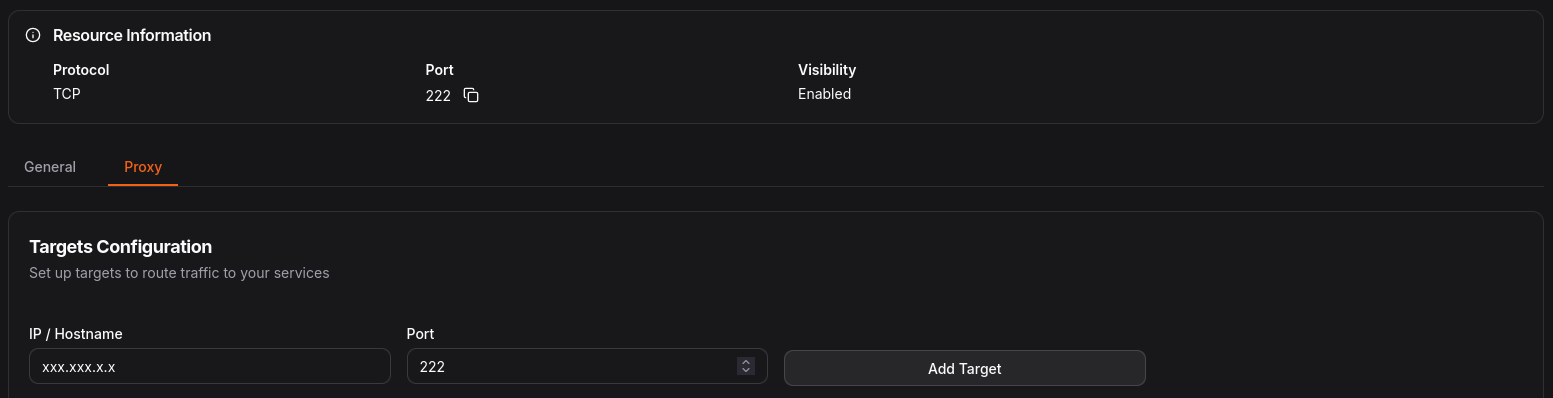

Finally, go back to the newly created resource on Pangolin and enter your homelab local IP (xxx.xxx.x.x) and port which is 222 if you have followed this guide.
